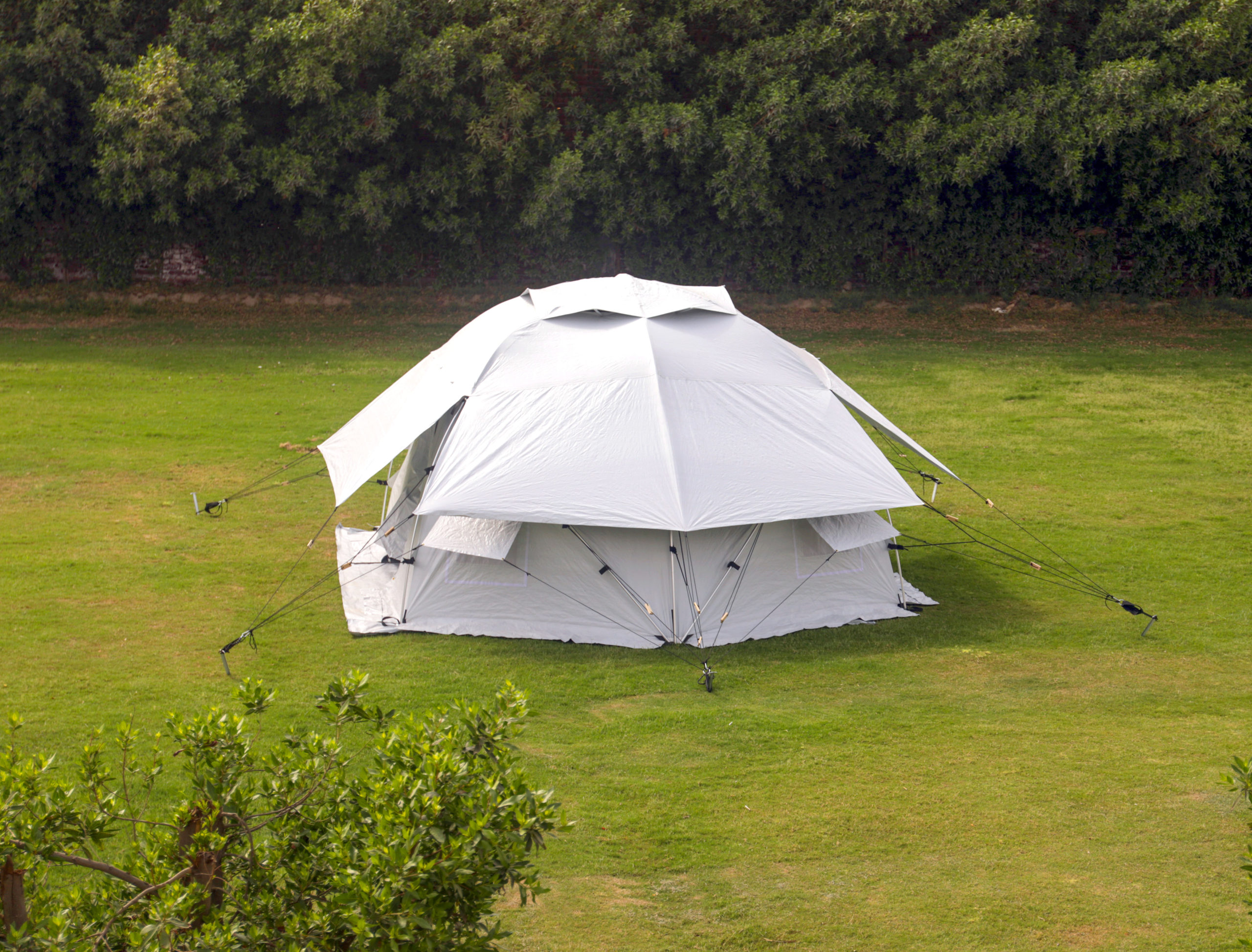

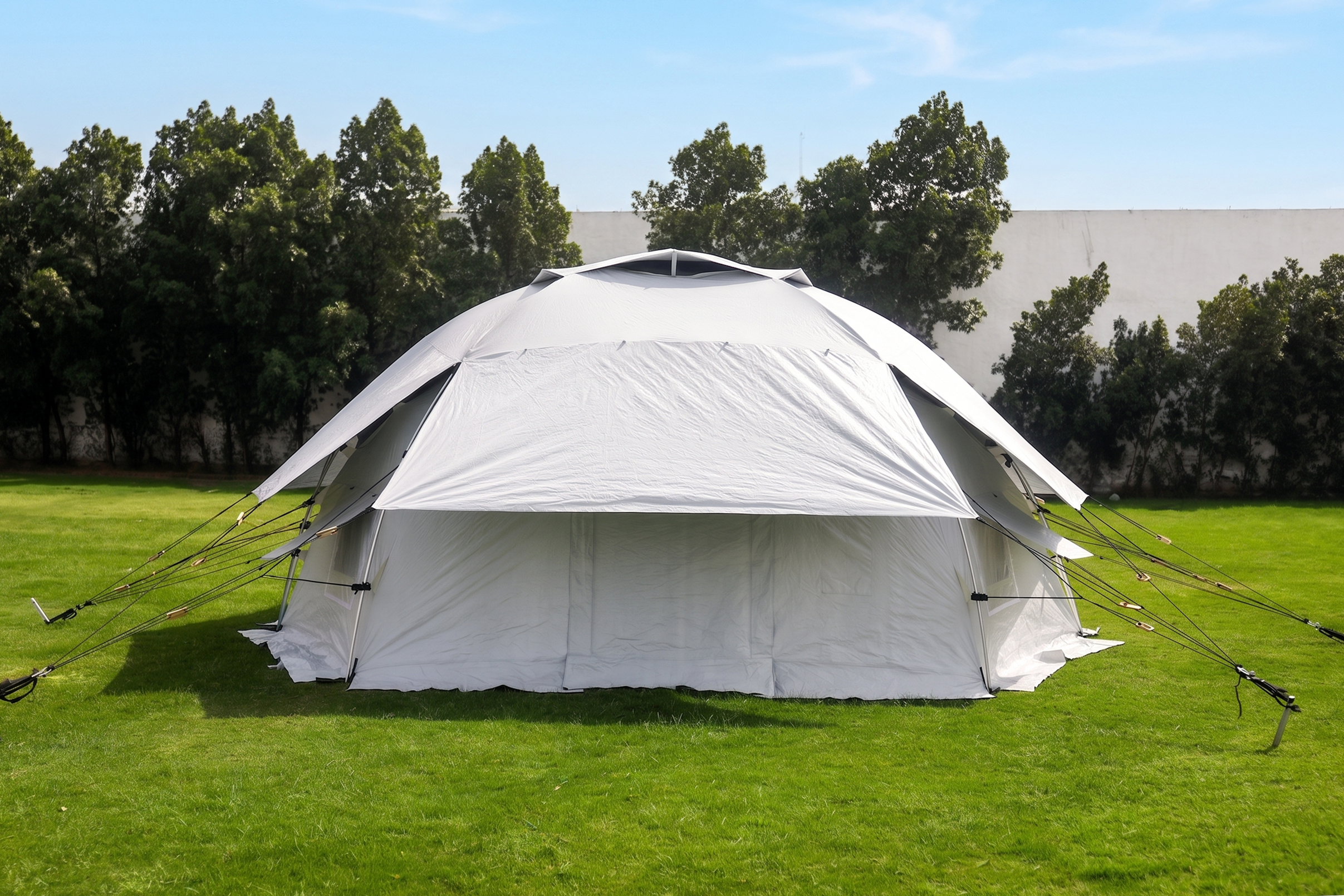

Eco GeoHome

Geodesic Family Tent, Eco-Design – ICRC/IFRC Standard

Key Features
- New generation family tent, geodesic shape for more beneficiary comfort and safety.
- Made of two layers: outer tent and shade cover.
- Offers fire retardant, waterproof and UV resistant properties.
- Accommodates 5 persons.
- Enables quick set-up by three persons in 30 minutes.
- Withstands wind loads up to 120 km/h.
- Allows rapid deployment in any emergency on pallets or in cages.
- Adapts to all seasons. Optional inner liner and winter modules available.
Dimensions
Materials

Outer tent (roof, walls, mud flaps, partition, groundsheets and shade fly)
Base fabric: woven high-density polyethylene (HDPE) black fibres and contains 15% post-consumer recycled content Coating: white low density polyethylene (LDPE) on both sides, 170 ±10 g/m 2 Fire retardancy: EN13823+A1
Mosquito nets
Polyester. Outer/inner tents: 25 holes per cm².
Frame
All aluminium Main pipes: outer diameter 18.5 ±0.5 mm, thickness 1.2 mm ±0.5%
Windows
Six windows. Two on each side of the tent and one next to each of the doors 500 mm x 500 mm Lower edge of the side window is 500 mm from the ground Lower edge of the door window is 1,050 mm from the ground
Ventilation
Two ventilation openings at the top of the tent roof above the doors
Mosquito nets
100% polyester. Outer/Inner tents: 25 holes per cm²
Doors
Two doors located on the centre of both 0.9 m wide x 1.7 m high
Add-ons

Downloads

Eco GeoHome - Specification Sheet

Videos

Key features video

Tent assembly video
