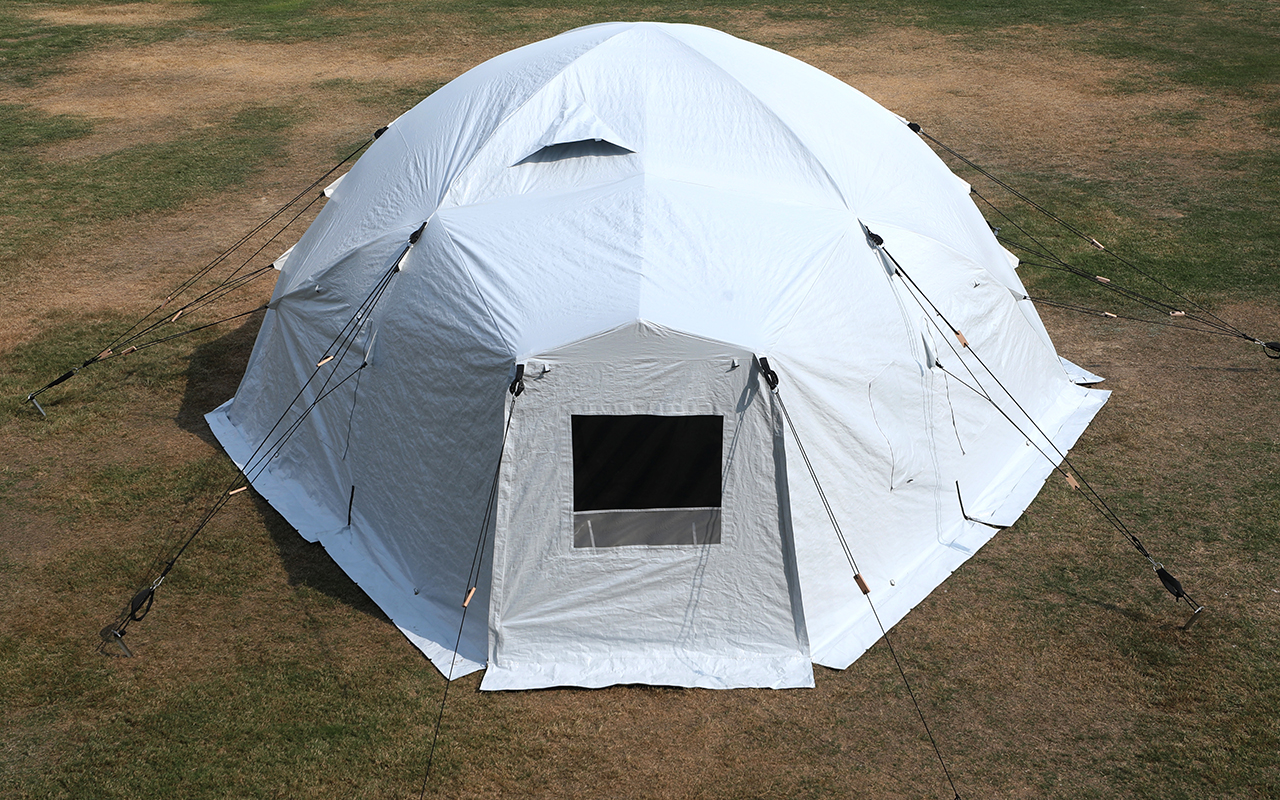

Winterization Module for GeoHome

Key Features
- Specifically designed to winterize GeoHome, the geodesic family tent ICRC/IFRC/IOM specifications
- An insulated winter cover to be placed directly over the family tent to keep the warmth inside and prevent heat loss
- An extra layer of protection against cold, wind and snow
- Fire retardant, waterproof and UV resistant
- Including fireproof chimney patch and flue pipe sleeves for the placement of the stove inside the tent
- Adding 8.4 m² space in its front and back vestibules areas
- Quick set-up, 3 people in 20 minutes
- Rapid deployment in any emergency on pallets or in cages
Dimensions
Materials

Winter cover (roof, walls, snow flaps)
Base fabric: Woven high-density polyethylene (HDPE) black fibers, Coating: white low-density polyethylene (LDPE) on both sides, 190 gsm, Fire retardancy: EN13823+AI
Window cover
Polyester mesh, 20-25 holes per inch²
Chimney patch and sleeve
Fireproof glassfiber fabric
Frame
Door frames: Steel, galvanized, 19 mm Ø, 1 mm wall thickness. Ridge pole: Steel, galvanised, 19 mm Ø, 1 mm wall thickness. Upright poles: steel, galvanized, 25 mm Ø, 1.2 mm wall thickness

Downloads

Videos

Assembly video
