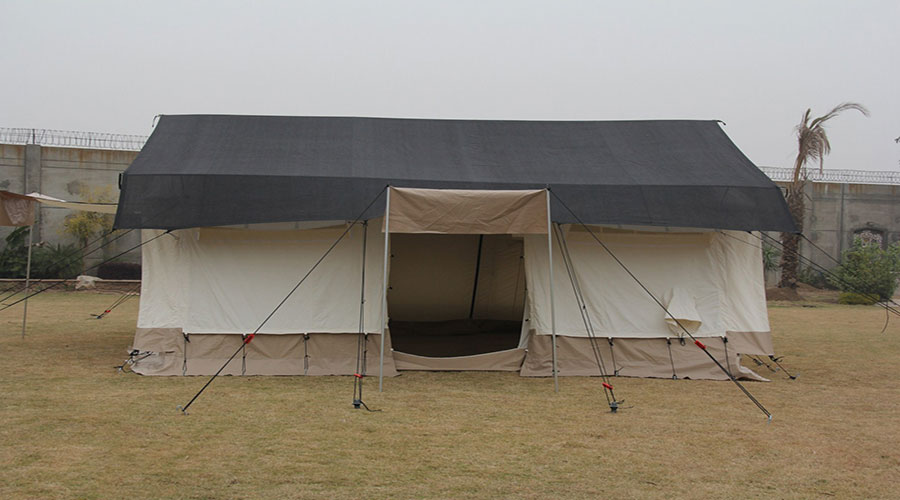

Legend™ 33 Tent

ICRC/IFRC Standard (Fire Retardant Optional)

  • Key Features
    • Fire retardant, waterproof, rotproof & UV-stabilised

    • Can be used for schooling, office, clinic, health centre, storage or temporary shelter purposes and can be attached to one another to make a longer structure

    • Separate ground sheet for use in tent is available as an option in case main tent is used for living / clinics

    • For hot climates shade net with frame is also available as an option

    • For increased protection from heat, cold, wind, dust, and insects an inner tent with sewed in bathtub type ground sheet is available as an option.

    • Suitable for 15-30 people

  • Dimensions
    Total size

    6.00 m x 5.62 m

    Ridge height

    3.00 m

    Side wall height

    2.10 m

    Total size

    5.70 m x 5.33 m

    Ridge height

    2.80 m

    Side wall height

    1.95 m

  • Materials
    Outer tent

    Roof, wall: Polycotton blended fibre yarns, 440 gsm for the roof, 320 gsm in finished state for the walls

    Mud flaps

    PVC coated fabric polyester 1100 dtex, PVC coated two sides 540 gsm

    All PE parts

    Base fabric: Woven high density polyethylene (HDPE) black fibres Coating: White low density polyethylene (LDPE) on both sides Tear strength: Minimum 100 N Tensile strength: Minimum 500 N, 15%-25% elongation in warp and wef

    Ground sheet

    190 gsm Polyethylene (HDPE), white, sewn in bathtub (±10%)

  • Downloads


Key features video
Tent assembly video
Tent production video
