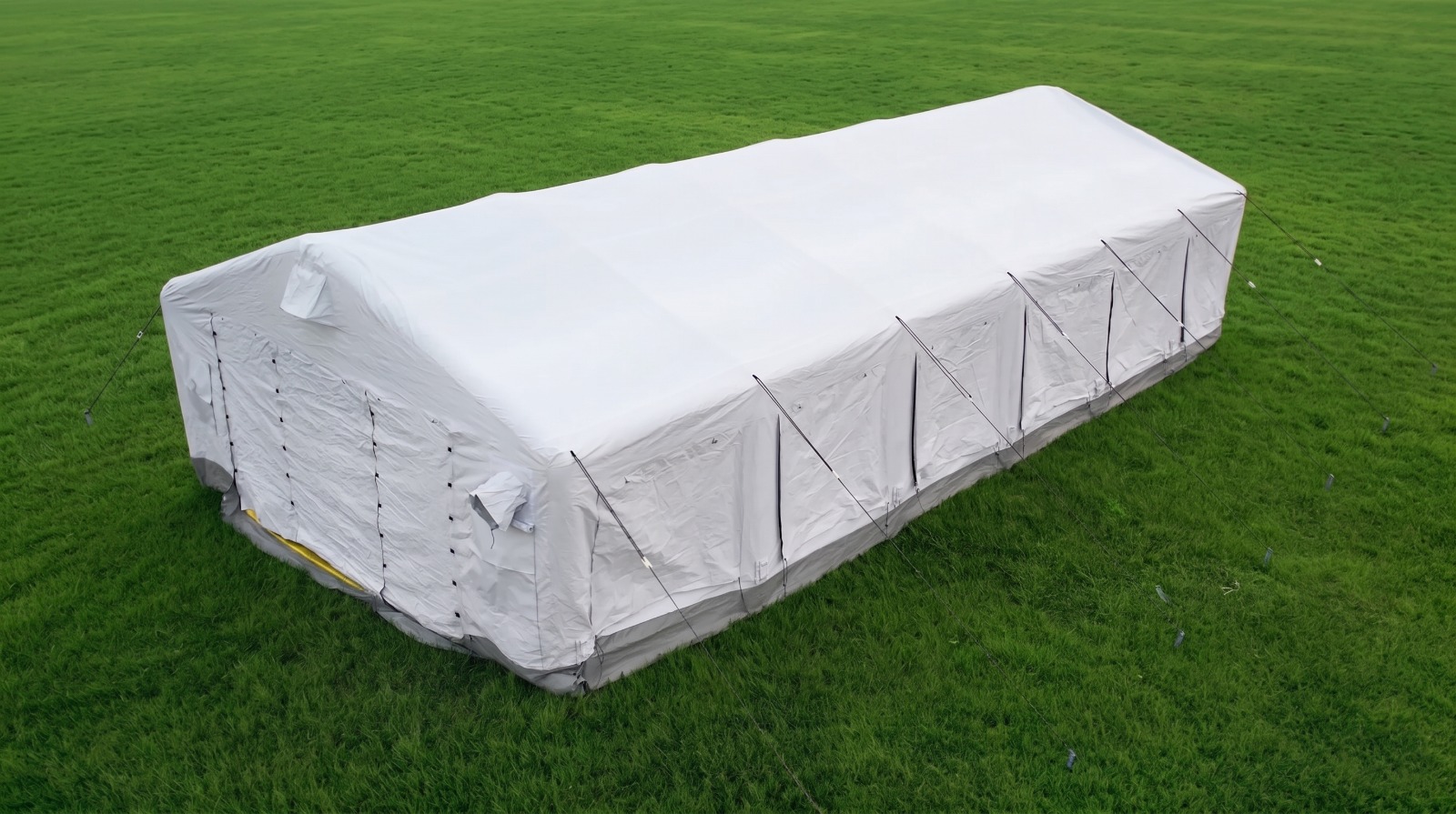

Huggy Air 72 Key Features Multipurpose tent with integrated inflatable structure for fast deployment.Fitted with vertical side walls for optimal use of internal space.Serves as a temporary free-standing shelter solution for medical, operational, and accommodation applications.Low pressure self-erecting inflatable tent.Sets up in 20 minutes with 2 persons with an electrical inflator. Dimensions SystemSelf-erecting inflatable tent with modular air-frameDimensionsHouse shape design with vertical wallsFloor area6.20 x 12.3 mSide wall height2.15 mCenter height3.20 mFront doorRoll-up doors with heavy-duty zipper and fold-down threshold - 120/180/120 cm in both gablesWindowsback up in case of failureVentilationPVC mesh ventilation grates in gables with weather proof hoodDuctsDouble ducts in each side wall, 350 mm Ø with closing flap Cable entry duct in each side wall, 80 mm Ø with closing flapStandard featuresFixing points for Partitioning Curtain, liners* or Ceiling net* Hanging loops for lights and medical equipment Materials Materials Cover and floor 250 g/m² laminated PE fabric, UV resistant, FR class CPAI-84-6 / DIN 4102-1B2Air frame500 g/m² PVC coated polyester fabric with 100% airtight TPU liner Air frame constructionArches with inflatable purlins Air chambers each with inflation/deflation valveOperating pressure350 mbar (5 psi)Operating temperature-20 C / +50 CWind resistance<80 km/hSnow load<15 kg/m²Set up time15 minutes / 2 people Add-ons No addons found Downloads Specification Sheet - Huggy Air- Inflatable Tent 72 m² Videos No, video found.
