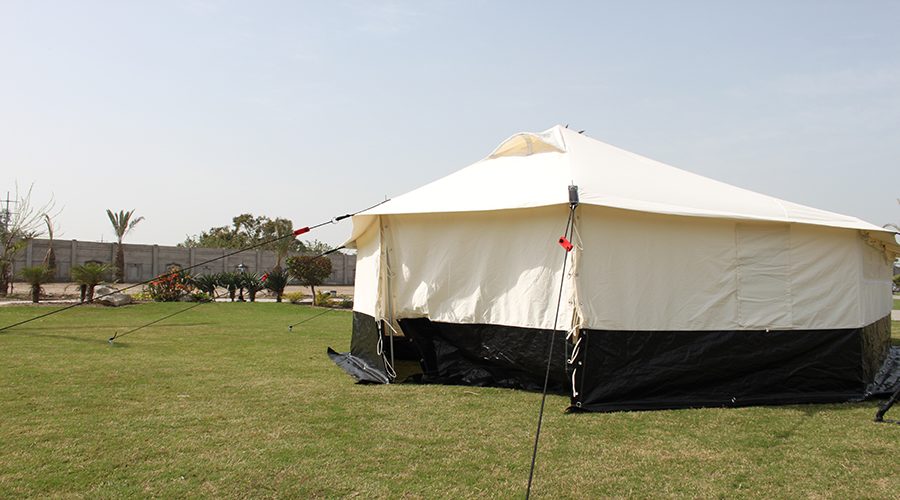

Viva™ Family Tent

UNHCR Standard

  • Key Features
    • Fire retardant, waterproof, rotproof & UV-stabilised

    • 16 m2 main floor area plus two 3.5 m2 vestibules for a total area of 23 m2, double-fly with ground sheet

    • Complies to recommended minimum living area in hot and temperate climates (3.5 m2 per person), providing extra space for cold climates

    • Suitable for family of 5 people

  • Dimensions
    Total living area

    23 m²

    Main floor

    16 m²

    Two vestibule areas

    3.5 m² x 2 = 7 m²

    Centre height

    2.20 m

    Width

    4.00 m

    Ridge length

    4.00 m

    Side wall height

    1.25 m

    Centre base length

    6.60 m

    Total size

    1.30 m x 1.40 m

    Door flaps

    1.40 m x 1.60 m

    Upper part

    1.40 m x 0.90 m (PC)

    Lower part

    1.40 m x 0.70 m (PE)

  • Materials
    Fire retardancy

    Pass CPAI section 5 and 6 with maximum 10s after flame average and maximum 30s after flame per test piece; Ageing under ISO 4892-2, type A, 360 hours.

    Outer tent

    Roof: 380 gsm polycotton, natural white; ±10%; Wall: 250 gsm polycotton, natural white ±10%

    Inner tent

    160 gsm polycotton, natural white

    Mud flaps

    180 gsm polyethylene (HDPE), black, ±5%

    Ground sheet

    180 gsm polyethylene (HDPE), black, sewn in bathtub ±5%

  • Downloads

Videos

Key features video
Tent assembly video
Tent production video
