Huggy™ 24 Tent

UNICEF Standard - Fire Retardant

  • Key Features
    • Fire retardant, waterproof, rotproof & UV-stabilised

    • Can be used for schooling, storage or temporary shelter purposes

    • Lightweight, rectangular and framed tent

    • Outer tent fabric is made of 450 gsm - 550 gsm PVC coated fabric

  • Dimensions
    Total size

    6.00 m x 4.00 m

    Centre height

    2.80 m

    Wall height

    1.95 m

    Doors

    1 each gable end: 1:00 m x 1.80 m

    Windows

    2 each gable end: 0.70 m x 0.85 m; 3 each side wall: 0.85 m x 0.80 m

    Centre height

    2.30 m

    Wall height

    1.80 m

  • Materials
    Outer tent

    450 gsm - 550 gsm fire retardant PVC coated fabric, natural white

    Inner tent

    120 gsm Polycotton, natural white

    Ground sheet

    190 gsm Polyethylene (HDPE), PVC fabric, sewn in bathtub, light grey/natural white

    Windows

    Three windows on each long sidewall 0.85 m x 0.85 m reinforced with PVC strips / two windows on each short sidewall 0.70 m x 0.85 m reinforced with PVC strips

    Doors

    One door on each gable end side 1.00 m x 1.80 m, closed with Velcro

    Ground sheet

    Double stitched to inner tent, 100 mm - 200 mm above the ground

    Main frame

    35 aluminum pipes 30.80 mm diameter, 2 mm thick, silver / 10 steel connectors 35 mm diameter, 1.5 mm thick, silver / 12 steel connectors with base plates 35 mm diameter, 1.5 mm thick, silver / four hanging steel connectors 8 mm diameter, two hooks on each end, silver

    Seams

    All seams are double-stitched with welded main roof seams

  • Downloads

Videos

Key features video

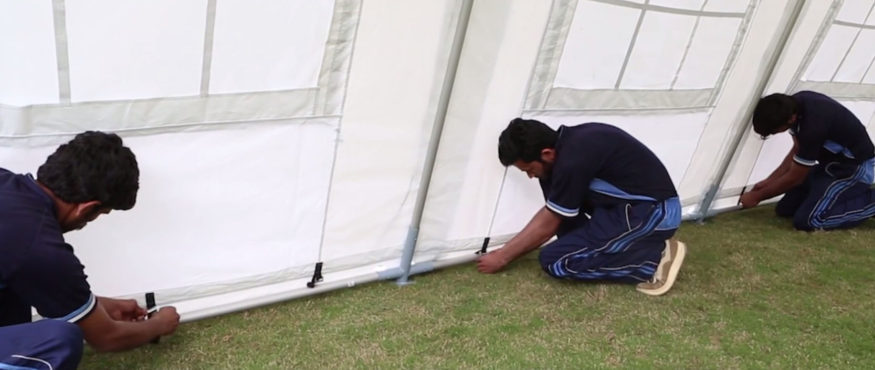

Tent assembly video
HSNDS factory video
